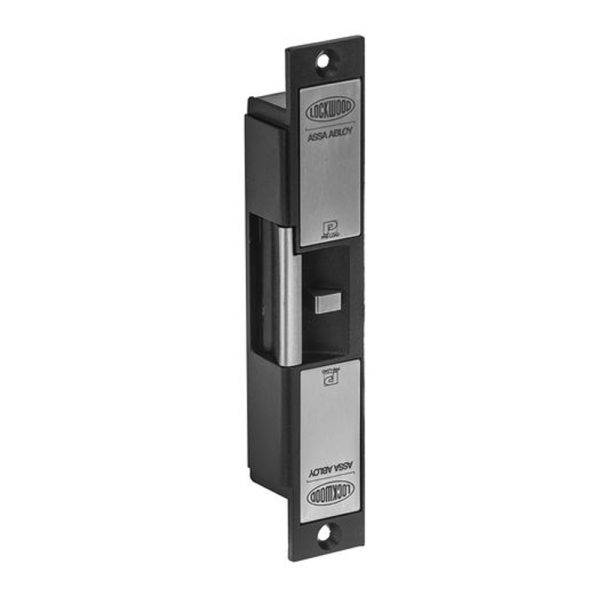

Description
Features:
Includes lip holes
Operates under pre-load up to 25kg
4hrs fire rating when used with an approved door set
Suitable for use on hinged doors with fire or security requirements
Field selectable fail safe / fail secure
Equipped with a silencer pad on the keeper which significantly reduces noise when the strike is operated
Fully monitored strike locked and door closed status
Australian designed and made Approvals / Certifications C-Tick & CE compliant.
Solenoid rated for continuous use
Built in protection diode.
Mounting tabs as supplied standard
Weather resistant (IP54)
Solenoid monitor – 1 amp NO/NC microswitch
Door/latch monitor – 1 amp NO/NC microswitch
Stainless steel striker
Suitable for 15 mm latch and 3 mm door gap
3 hardened locking pins.
Solenoid can be continuously powered
Self adhesive installation template
1300kg static strength rating
1,200,000 cycles endurance rating @ 25kg pre-load
Specifications:
Current: 250mA@12V DC – 130mA@24V DC
Drilled for Lip Extension: Yes
Field Selectable Fail Safe/Fail Secure: Yes
Holding Strength: 1300kg
IP Rating: 54
Monitored Latch: Yes
Monitored Solenoid: Yes
Operates Under Pre-load up to: 25kg
SCEC Endorsed: Yes
Working Voltage: 10V~30V DC
Fire Rated: Yes
