Description

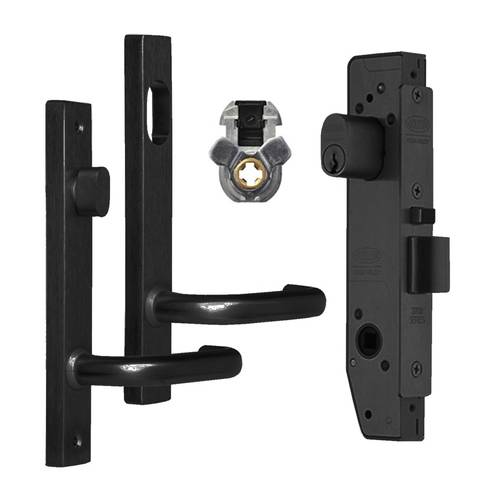

Mortice lock:
Short backset universal primary mortice lock.
Easy Red /Green function setting.
All lock settings are made from under the faceplate allowing for simple in-door configuration.
Standard primary locks include holdback and anti-lockout capabilities.
Lock is always holdback capable, no setting is required. Holdback can be activated at any time – unless anti-lockout is selected.
Operated by key or handle outside or by turnsnib, key or handle inside.
Zinc diecast body with stainless steel chassis plates for improved strength.
Electric Strike compatibility.
Supplied with cylinders.
Supplied with Selector ‘V’ cam.
Compatible to most restricted keying systems.
Backset: 23mm backset as standard
Suits metal door thickness: 35mm to 50mm.
Stainless steel reversible latch bolt: 15mm
Face Plate Finish: Matt Black.
External Furniture:
Narrow stile exterior square end plate
Cylinder hole and 70 series tubular lever
Plates are designed to fit back to back
External plates supplied with fixing screws
Disabled access AS1428.1 compliant lever
Plate size: 185mm x 26mm x 11.5mm
Suits door thickness: from 32mm to 50 mm
Screw fixing centres: 160mm
Fixing: Concealed
Finish: Matt Black
Internal Furniture:
Narrow stile internal square end plate
Turn snib and 70 series tubular lever
Plates are designed to fit back to back
Disabled access AS1428.1 compliant lever
Fixing: Visible
Fixing holes centres: 160mm
Suits door thickness: from 32mm to 50mm
Plate size: 185mm x 26mm x 11.5mm
Finish: Matt Black
